Description
FEATURES
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL’s exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.

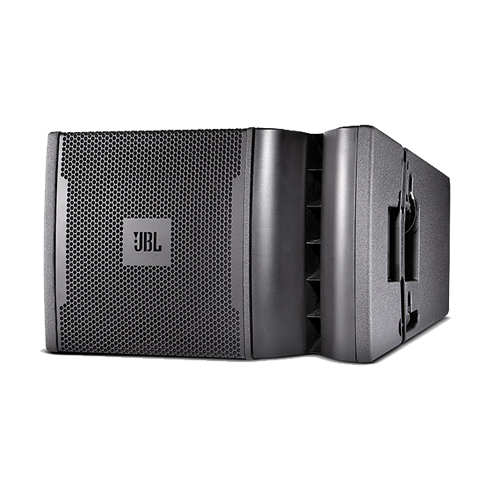

- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits “array shading”.
SPECIFICATIONS
| Power Rating | 1750 Watts Peak 875 Watts Continuous |
|
| Frequency Range | 57 Hz – 20 kHz (-10 dB) |
|
| Dimensions (H x W x D) |
349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in) |
|
| Frequency Response | 75 Hz – 20 kHz (+/-3db) |
|
| Maximum Peak Output | 136 dB SPL at 1m | |
| Coverage Pattern | 100 x 15 nominal | |
| DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts | |
| DPC-2 Output Section | LF: Dual-Bridged Technology™, Class D | |
| Audio Input Connector | XLR with loop through | |
| LF Driver | 1 x JBL 2262FF 305 mm (12 in) neodymium magnet | |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) | |
| User Controls | Input Attenuator (0-16 dB) | |
| Signal Processings | DSP based, resident in Input Module | |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz | |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) | |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) | |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V | |
| Enclosure | 25/15 mm, 11-ply birch plywood | |
| Suspension / Mounting | Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting | |
| Finish | Black DuraFlex™ finish | |
| Grille | Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam | |
| Net Weight | 24 kg (52 lb) | |
