Description

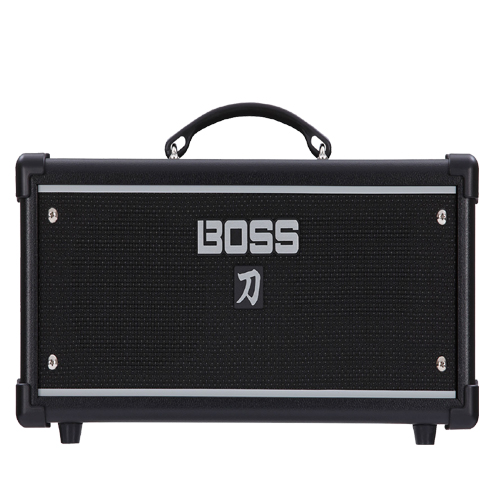

Euphonycart presents Boss KATANA-HEAD Guitar Amplifier. Compact and powerful, the 100-watt Katana-Head delivers sharply defined rock tones with rich, commanding presence. The amp also includes integrated access to a huge range of BOSS effects, which are customizable using the free BOSS Tone Studio editor software. And with the powerful onboard Tone Setting memories, you can store your favorite amp channel setups and effects combinations for instant recall. In addition, the versatile Katana-Head is equipped with an effects loop and MIDI for integration with advanced rigs, and features a convenient built-in monitor speaker for tone preview and practice without a cab.
- Light and portable 100-watt amplifier head with powerful, gig-ready sound
- Five unique amp characters: Clean, Crunch, Lead, Brown (derived from the Waza amp), and Acoustic (for acoustic-electric guitars)
- Choose from a huge selection of customizable effects and effect routing configurations with the BOSS Tone Studio editor software
- Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
- Tone Setting memories for storing and recalling all amp and effect settings
- Power Control for achieving cranked-amp tone and dynamic response at low volumes
- Integrated 5-inch monitor speaker for practice without an external cab
- MIDI input for Tone Setting selection and effects on/off from a MIDI foot controller
- Pro setups available at BOSS Tone CentralKatana Version 2 Newly Added Features
- Tone Setting memories increased from four to eight (two banks of four)
- Access to 58 total effects (SDE-3000 delay, Phaser 90E, and Flanger 117E types added)
- Full-time channel and global parametric EQs for refined tone shaping
- Three Cabinet Resonance types adjust the interaction between the amp’s output section and speaker, enabling you to fine-tune the feel and tone of the amp
- Cabinet simulation on the line, USB, and phones/recording outputs enhanced with three Air Feel settings for adding depth and dimension to direct tones
- Reverb section now supports delay and delay-plus-reverb in addition to reverb only
- Expanded send/return routing options for inserting external processing in the effects loop
- SPECIFICATIONS
- Rated Power Output
- 30 W (Using internal speaker)
100 W (Using external speaker) - Nominal Input Level
- INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm) - Speaker
- 12 cm (5 inches) x 1
- Controls
- POWER switch
MASTER knob
PRESENCE knob
POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)[AMPLIFIER]
AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
GAIN knob
VOLUME knob
[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob[MULTI EFFECT]
BOOSTER/MOD button
DELAY/FX button
REVERB button
TAP button
BOOSTER/MOD knob
DELAY/FX knob
REVERB knob[TONE SETTING]
CH1 button
CH2 button
CH3 button
CH4 button
PANEL button - Indicators
- ACOUSTIC
CLEAN
CRUNCH
LEAD
BROWN
BOOSTER/MOD
DELAY/FX
REVERB
TAP
CH1
CH2
CH3
CH4

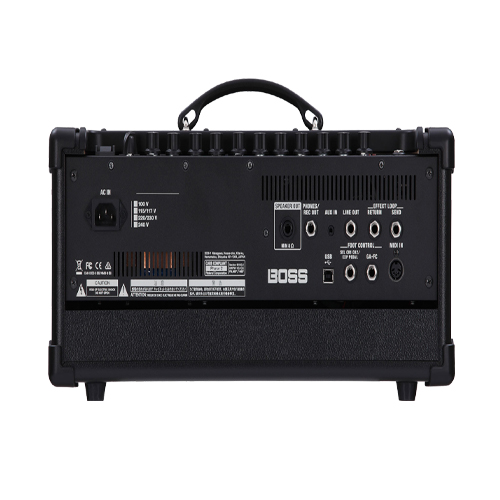

PANEL - Connectors
- INPUT jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SPEAKER OUT jack: 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
MIDI IN connector
USB port: USB B type
AC IN jack - Power Consumption
- 77 W
- Accessories
- Owner’s manual
Power cord
GA-FC sticker - Options (sold separately)
- Footswitch: BOSS FS-5L
Expression pedal: Roland EV-5, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC) - SIZE AND WEIGHT
- Width
- 470 mm
18-9/16 inches - Depth
- 228 mm
9 inches - Height
- 215 mm
8-1/2 inches - Weight
- 8.8 kg
19 lbs 7 oz - * 0 dBu = 0.775 Vrms
