Description

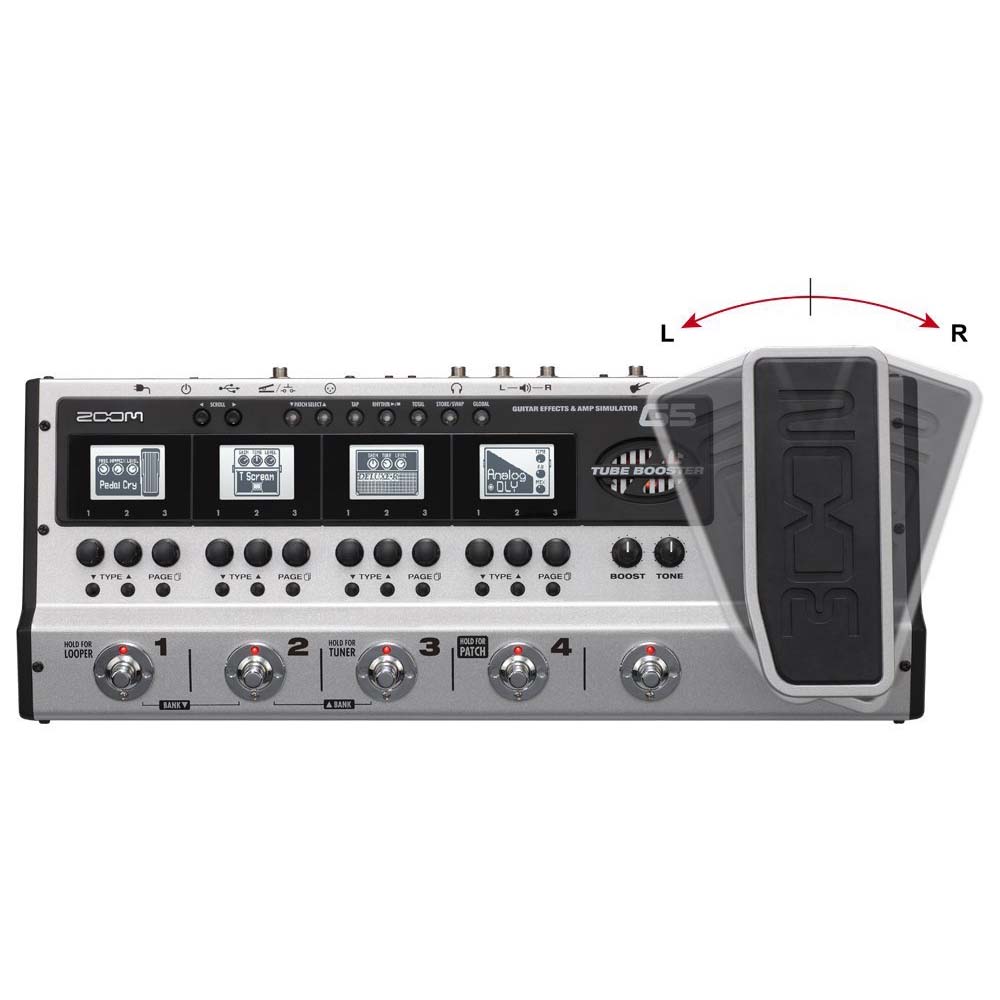

The Zoom G5 is a complete guitar pedalboard in one amazing device. Not only does it provide a whopping 123 effects and 22 amp and cabinet models, it allows you to chain up to 9 of them together for extraordinary multi-effect complexity. Four separate backlit displays—each with its own dedicated foot switch and control knobs—make it easy to edit effects and bring them in and out as needed. Advanced features include the revolutionary three-dimensional Z-Pedal and a 12AX7 tube booster, plus a balanced line-level output, onboard chromatic tuner, and an integrated rhythm machine and Looper. Wherever your guitar takes you, you can count on your G5 to deliver great sound and unparalleled flexibility.
The G5 is loaded with 145 incredible-sounding DSP effects. These include 123 compressors, noise gates, filters, equalizers, and wah effects, as well as boosters, overdrives, fuzzes, phasers, and flangers, plus chorus, pitch shift, tremolo, vibrato—even ring modulation. There are simulations of both classic and contemporary pedals such as the MXR Dynacomp, Distortion+ and M-117R, Aphex Punch Factory, Moog MF-101, Ibanez TS808, Marshall Guv’nor, Fuzz Face, Big Muff, Pro Co Rat, ADA Flanger, Z.Vex Seek-Wah, and Boss OD-1, DS-1, Metal Zone, and CE-1. Original effects include Zoom’s Noise Reduction (ZNR) algorithm and ExtremeDS, which offers the most powerful gain of any distortion effect in the world. Delays and natural-sounding reverbs include rooms, halls, arenas, plates, springs, and tape delay simulators, as well as dual effects such as compressor/overdrive, chorus/delay and delay/reverb. There are also an additional 20 expressive effects specially designed for use with the Z-Pedal.
In addition, there are 22 amp and preamp models—vintage and modern, tube and solid-state—based on the best from manufacturers like Fender, Marshall, Matchless, ADA, Mega Boogie, Sound City, Hiwatt, Orange, Carr Mercury, Two Rock, Diezel, ENGL, Bogner, and Krank. Each comes with its own distinct virtual cabinet, and you can pair any amp model to any cabinet model to further alter the tonal quality. You can even match the output of a given amp/cabinet model to the actual setup you’re playing through (options include Direct, Combo Front, Stack Front, Combo Power Amp, and Stack Power Amp).
Easy to use yet packed with power
The intuitive design of the G5 allows easy navigation in both live and studio settings and makes creating, saving, and rearranging effects a breeze. Four LCD screens, each with corresponding footswitches and parameter knobs, form a large graphical interface that allows you to view and edit multiple effects at a glance.
Up to 9 effects can be used simultaneously, arranged in any order you like, and signal flow can be reversed at the touch of a button. 297 patch memories are provided for the storage of custom edited and chained multi-effects, all pre-loaded with useful factory settings. Changing patches is near-instantaneous and requires just a tap of a footswitch.
A standard ¼” input jack and passive/active switch allow you to plug any electric guitar into the G5. Outputs are provided on dual mono ¼” and balanced XLR output jacks, enabling the unit to be connected to one or two amplifiers or to line-level devices (pre- or post-effect) such as external effects devices, recorders, and mixing boards. There’s also a dedicated headphone output for private monitoring.
Advanced features for that extra edge
The G5 offers a slew of advanced features, including a built-in Tube Booster—complete with a real 12AX7 vacuum tube—for warmth and intensity, plus up to 16dB of extra overdrive. There’s also a built-in chromatic tuner that supports a variety of standard guitar tunings—even drop tunings. A Tap Tempo function allows you to to set delay times and modulation effect frequencies in real time to the rhythm of the song you’re playing. There are 41 realistic-sounding rhythm patterns too—PCM samples of drums being played in a variety of different genres and time signatures.
It’s easy to create full orchestrations with your G5. An onboard Looper enables you to layer up to 60 seconds of performance (through the effect or effects of your choice) in high quality 16-bit 44.1kHz audio. The Looper can also be used in conjunction with rhythm accompaniments, allowing you to play along with the pattern of your choice.
Features at a glance
- 123 effects, including distortion, compression, modulation, delay, and reverb
- 22 amp/cabinet models
- Tube Booster (with real 12AX7 tube!) for added warmth and up to 16dB of overdrive
- 4 backlit LCDs with contrast control
- Intuitive user interface
- Ultra-fast (1.6 ms) patch change speed
- Up to 9 effects can be used simultaneously, chained together in any order
- 297 memory locations for storage of factory and/or user-created patches
- Input jack accepts standard mono guitar cable
- Active/Passive switch
- Dual mono output jacks for connection to amps
- Dedicated stereo headphone output
- Balanced XLR output jack with ground lift for DI connection (pre- or post-effect) to line-level devices, mixing boards, and recorders
- Store and Swap functions make patch organization a breeze
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Tuner range of 435- 445 Hz
- Looper allows recording of up to 60 seconds of CD-quality phrase recording
- 41 built-in rhythm patterns which can be used in conjunction with the Looper
- Z-Pedal for full three-dimensional control over volume or selected effect parameters
- Control input for external footswitch or footpedal
- Included AC adapter
- 2-in/2-out USB audio interface for PC/Mac computers
- Compatible with Zoom Edit & Share patch editor
- Includes Steinberg Cubase LE recording software
SPECIFICATIONS:
- Number of effects: 145
- Number of simultaneous effects: 9 (8 DSP + 1 Z-Pedal effect)
- Number of patches: 297 (99 banks of 3)
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit, 128× oversampling
- D/A conversion: 24-bit, 128× oversampling
- Signal processing: 32−bit floating-point and 32-bit fixed point
- Frequency characteristics: 20Hz – 20 kHz +1 dB, -6 dB (into 10 kΩ load)
- Display: Backlit dot matrix LCD x 4
- Input: Type: Standard mono ¼” phone jack
- Rated input level: -20 dBm
- Input impedance: 1 MΩ ACTIVE/PASSIVE (switch selectable)
- Output: L/R:
- Type: Dual mono ¼” phone jack
- Maximum output level: +5 dBm (output impedance load of 10 kΩ or more)
- Phones:
- Type: Standard stereo ¼” phone jack
- Maximum output level: 20 mW + 20 mW (into 32Ω load)
- Balanced:
- Type: XLR connector
- Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)PRE/POST (switch selectable)GND LIFT (switch selectable)
- Control input: For Zoom FP01/FP02/FS01
- AC adapter: DC 9V center-negative, 500 mA (Zoom AD-16)
- S/N (input conversion noise) : 120dB
- Noise Floor: －100dBm
- USB
- USB interface: Sampling frequency: 44.1 kHzBit rate: 16-bit
- Compatibility:
- Windows® XP SP3 (32bit) or newer with Intel® Pentium® 4 1.8GHz or faster, RAM 1GB or more
- Windows® Vista SP1 (32bit, 64bit) or newer
- Windows® 7 (32bit, 64bit) with Intel® Pentium® Dual-Core 2.7GHz or faster, RAM 2GB or more
- Mac OS X 10.5/10.6/10.7 with Intel® Core Duo 1.83GHz or faster, RAM 1GB or more
- OTHER
- Dimensions: 190mm(D) x 470mm(W) x 90mm (H)
- Weight: 3.1 kG
- *0dBm＝0.775Vrms
