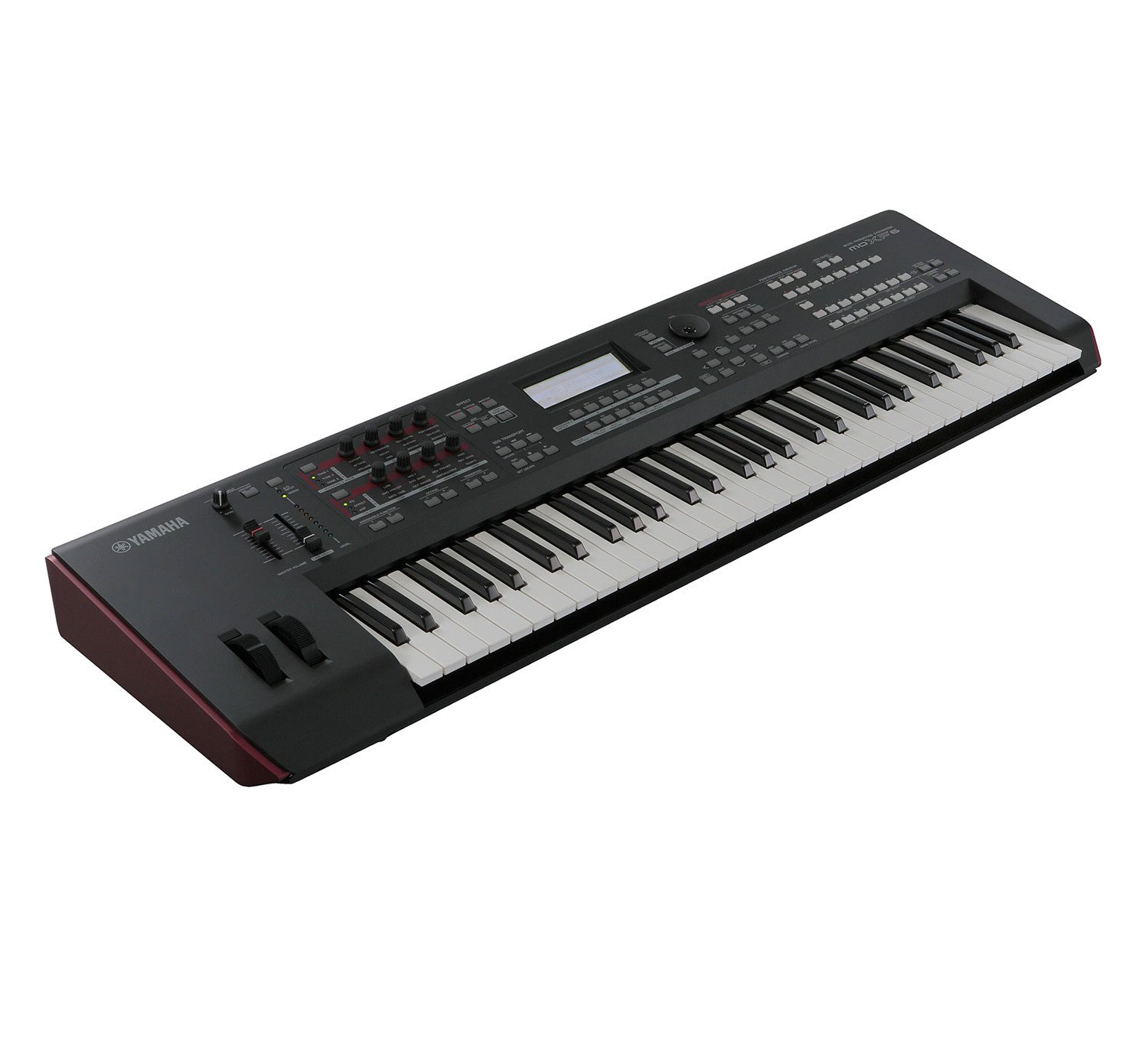

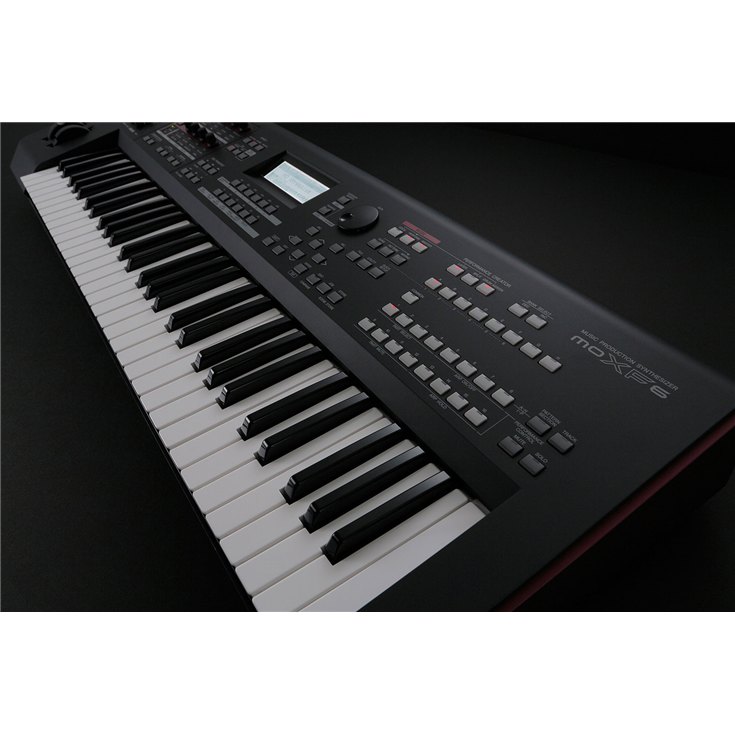

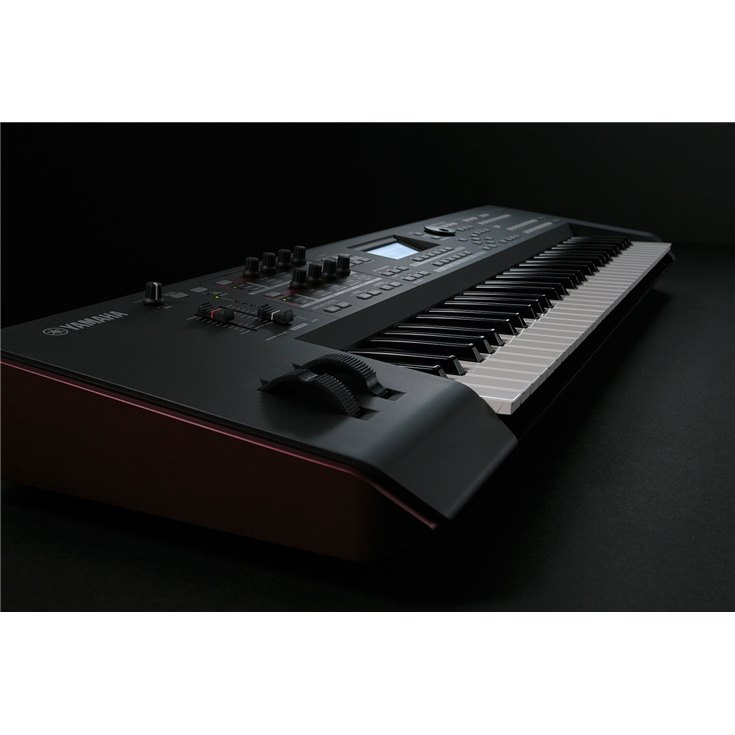

Yamaha MOXF6 Synthesizer Keyboard

91,680.00

Out of Stock!

Confirm the availability now!

Description

The Yamaha MOXF6 combines a MOTIF XF sound engine and Flash memory expandability, a MIDI keyboard controller with extensive DAW and VST control, USB Audio/MIDI interfacing, onboard sequencing, and an extensive DAW / VST software bundle.

Features

MOTIF XF sound quality

The MOXF boasts a rich collection of instrument voices that includes pianos, electric pianos, strings, wind instruments, orchestral sounds, guitars, basses, and drums, as well as a wide variety of vintage and modern synth sounds.

– MOTIF XF sound engine

Of special note are the detailed digital re-creations of two Yamaha grand pianos (a 9-ft CFIIIS and a 7-ft S6) that only an acoustic piano manufacturer could achieve. The finely-detailed reproduction of even very subtle nuances has resulted in exquisitely crafted piano voices that will satisfy even the most demanding players. Now containing a huge total of 741 MB of waveforms, and featuring all-new content, the MOXF offers 136 new voices including the superb S6 grand piano, keyboard sounds such as clavinets and organs, and a range of new sounds from genres as diverse as orchestral and hip-hop.

– VCM effects

Yamaha’s proprietary VCM (Virtual Circuitry Modeling) technology simulates the effects of vintage EQs, compressors, and phasers at the circuit level. This technology has enabled Yamaha to improve the quality of the instruments in the MOXF by modeling the sonic texture of vintage analog compressors, EQs and stomp boxes right down to their component transistors and resistors. The MOXF also puts the high-quality effects found in Yamaha’s industry-standard digital recording consoles at your fingertips, as well as the award-winning REV-X reverb found in the SPX2000. It even comes equipped with vocoder effects, allowing you to connect a microphone to the MOXF’s A/D input terminal and apply effects to your voice or create stunning harmonies.

Flash memory expandability

The MOXF is compatible with the sound content developed for the MOTIF XF and MOX. The optional Flash board lets you add up to 1 GB of new samples to your MOXF to customize and tailor your sound set to your needs, using promotional contents like Yamaha’ s “Inspiration In A Flash” and “CP1 Piano,” as well as the many third party libraries for sale.

Performance mode to enhance your creativity

Performance mode allows you to combine multiple voices together (up to 4 parts) and play them on one MIDI channel, so that you can play dynamic layer sounds or even solos along with drums and bass backing tracks. With the interactive Arp engine, playing simple chords or even single notes gives you complete musical performances to inspire your creativity. The MOXF has 256 preset performances in a wide variety of music styles including rock, world, hip hop, jazz, and more.

– Built-in sequencer to give shape to your inspiration

MOXF features a built-in sequencer that lets you produce high-quality music without the need for a computer or any other external devices. This powerful tool offers both real-time recording, which records your performance data as you play it, and step recording, which is suitable for recording precise phrases or other difficult passages. You can even record particularly creative performances directly to a song or pattern simply by pressing the [REC] button.

Advanced computer integration makes the MOXF the center of your music production studio

A complete suite of bundled software

The MOXF comes with a variety of music production software that allows you to integrate it with your computer setup. These include the MOXF Editor for detailed editing of voice and mixing parameters, MOXF Remote Editor, a convenient tool that lets you edit and create control templates for your favorite VST instruments, and Remote Tools, which makes integration with Cubase software incredibly simple.

A single USB cable for both Audio and MIDI connections

A single USB cable is all you need to transmit both audio and MIDI data between the MOXF and your computer. The MOXF features a built-in 4-in 2-out USB audio interface so you can record its internal sounds, and two dedicated audio inputs that can be used to capture guitars and vocals all recorded directly to your computer. Compatible with all the major DAWs including Cubase, you can digitally record the sounds of the MOXF and anything connected to its stereo analog inputs straight to your favorite recording software. Far more than just a music production tool, the USB connectivity and in-depth keyboard controller functionality also lets you playback and control your VST soft synths via the audio outputs of your MOXF, allowing you to integrate VSTs into your live stage shows with no extra gear—just add a computer and play.

Music production with Cubase AI 7

Cubase AI 7 is a version of Steinberg’s DAW (Digital Audio Workstation) software made specifically to integrate with Yamaha music production synthesizers. Because the MOXF features both a MIDI and an audio interface you can record up to 32 audio and 48 MIDI tracks. You can even connect an analog mixer, microphone or guitar to the analog inputs, you can record any instrument to your computer via the MOXF. With built-in effects and the ability to control up to 16 VST instruments, Cubase AI lets you perform the complete computer music production process, including notation, scoring, and automated mixing.

Controlling DAW software

The MOXF has a special remote mode for controlling DAW software that allows you to use the buttons on its panel to open and close software windows, add instrument tracks and select VST instruments. The AI knob can be used as a jog wheel or set so that any parameter you mouse over in Cubase can be controlled automatically. You can also use the MOXF to control other popular DAW packages.

Steinberg Prologue VSTi

Prologue is a wonderfully rich-sounding virtual analog synthesizer that will become an indispensable part of your VSTi arsenal. Prologue’s textural range includes lush, detailed pads and bright, acerbic leads and everything in between. Prologue’ s intuitive user interface provides full editing capabilities with access to its three oscillators, powerful multi-mode filter, four envelopes, two LFOs, a powerful modulation matrix, and onboard effects. And because Prologue is polyphonic with up to 128 voices, you’ll (probably) never run out of creative space.

YC-3B Tone Wheel Organ VST

YC-3B is a VST Instrument that reproduces the classic sound of tone wheel organs. It offers 64 different preset sound programs that you can also use to create your own original sounds, which you can then save as VST presets.

Playability and Usability

– Easy operation and comprehensive controls

Category search mode features 16 different instrument categories, each with its own sub-categories, so getting the sound you need is a fast and intuitive process. With Performance Creator you can easily build up layer or split performances with a single button press. Start with a voice you like, and then press LAYER to have the MOXF choose a suitable layer sound. Press SPLIT to call up a left hand bass sound automatically, and then go to DRUM ASSIGN to access the huge variety of built-in rhythm patterns available.

– 88-key Graded Hammer Standard (GHS) action and 61-key semi-weighted action

The MOXF6 offers a 61-key, semi-weighted keyboard that has been designed and adjusted so that you can easily and expressively play the rich variety of sounds the instrument offers.

– Mobility – Light and easy to carry

A lightweight body (MOXF6: 7.1kg (15.7lbs) means that carrying the MOXF to rehearsals or gigs is easy— pound-for-pound these are the most powerful workstations Yamaha has ever made. Both models are 50% lighter than comparable MOTIF models.

Specifications

Keyboards

MOXF6 61 keys, semi-weighted keyboard (Initial Touch)

Tone generator

Tone Generator AWM2, with Expanded Articulation
Maximum Polyphony 128 notes
Multi Timbral Capacity 16 parts (Internal), A/D input part
Wave 741MB (when converted to 16-bit linear format), 3,977 waveforms
Voices Preset: 1,152 Normal Voices + 72 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 384 Normal Voices + 32 Drum Kits
Performance User: 256 (up to 4 parts)
Filter 18 types
Effects Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 54 types x 8 parts, Vocoder x 1 (uses both Insertion Effect A and B blocks), Master Effect x 9 types, Master EQ (5 bands), Part EQ (3 bands, stereo)

Sequencer

Note Capacity Approx. 226,000 notes
Note Resolution 480 ppq (parts per quarter note)
Maximum Polyphony 124 notes
Tempo (BPM) 5 – 300
Song recording type Real time replace, Real time overdub (with the exception of the Pattern Chain), Real time punch in/out (Song only), Step (with the exception of the Pattern Chain)
Song tracks Song: 16 sequence Tracks (Loop on/off can be set for each Track), Tempo Track, Scene Track , Pattern: 16 Phrase Tracks , Pattern Chain: Pattern Track, Tempo Track, Scene Track
Songs 64 Songs, Mixing Voices: 16 Voices per Song/Pattern (up to 256 Voices) , Mixing Templates: 32 for all Songs and Patterns
Patterns 64 Patterns (x 16 sections), Measures: 256 maximum
Phrases User Phrases: 256 per Pattern
Arpeggio Preset: 7,981 types, User: 256 types (MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set. 4 Arpeggio parts can be played simultaneously.)
Scene Memory 6 per Song
Sequence formats Original format, SMF format 0, 1 (Format 1 load only)

Size/Weight

Dimensions Width 1,030mm (40.5″)
Height 125mm (5″)
Depth 358mm (14″)
Weight Weight 7.1kg (15.6 lbs.)

Other

Master User:128 (Each master includes Master keyboard settings with 4 Zones, Assignable Knob settings, Program Change table.)
Sequence Software compatible with the Remote Control function For Windows®: Cubase 7 series, SONAR X2, For Mac®: Cubase 7 series, Logic Pro 9, Digital Performer 7 (Functions to be controlled differ depending on the software.)
Controllers Pitch Bend wheel, Modulation wheel, Assignable Knob x 8, [DATA] dial x 1, Assignable Function buttons x 2
Display 240 x 64 dot, backlit LCD

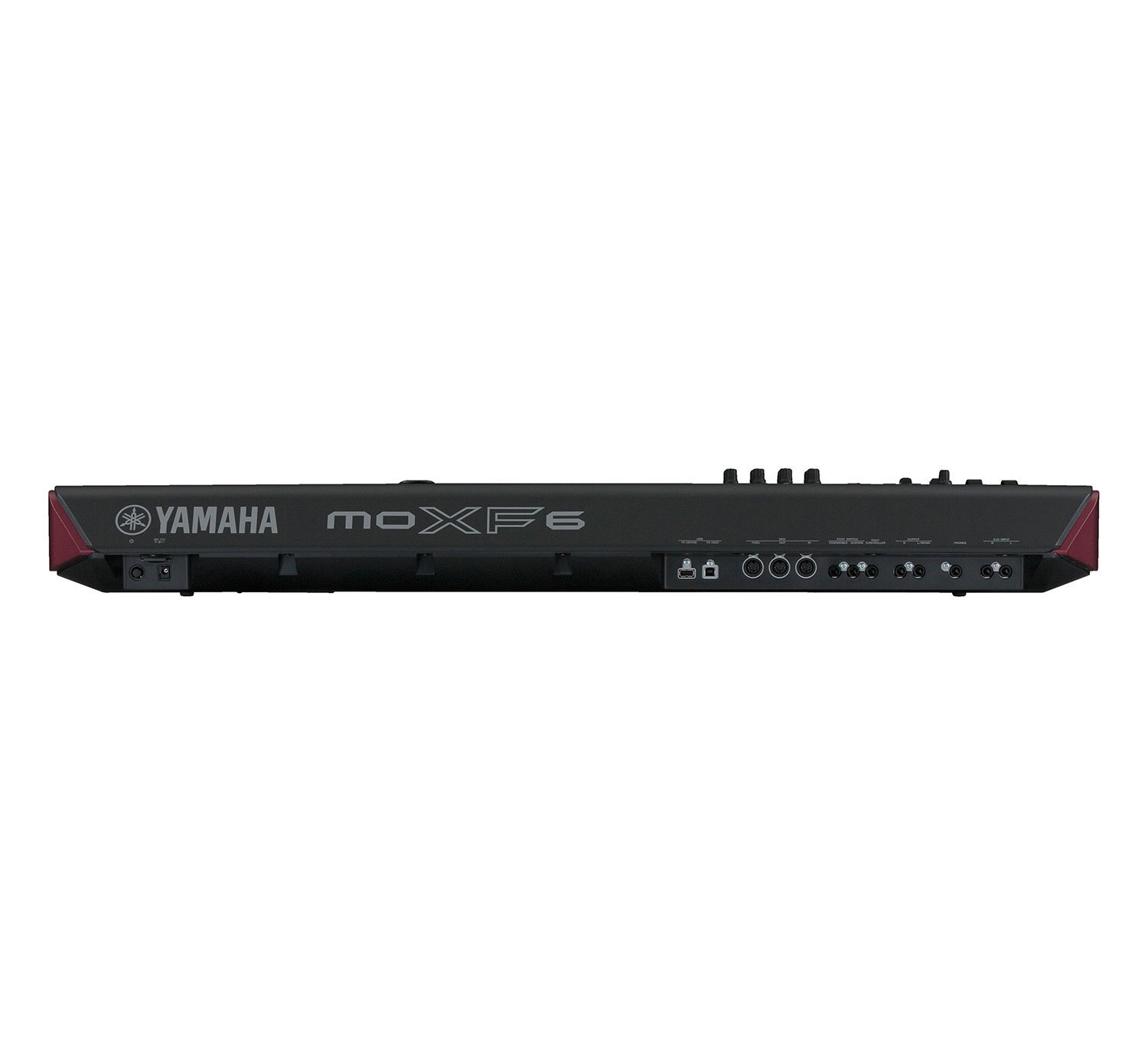

Connectors OUTPUT [L/MONO]/[R] (standard phone jack), A/D INPUT [L]/[R] (standard phone jack), [PHONES] (standard stereo phone jack), [FOOT CONTROLLER], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], MIDI [IN]/[OUT]/[THRU], USB [TO HOST]/[TO DEVICE], DC IN
Power Supply 13W
Accessories AC adaptor (PA-150 or an equivalent recommended by Yamaha), USB cable, Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), CUBASE AI DOWNLOAD INFORMATION
