Yamaha DTXM12 Multi Pad

Description

Specification:

Size/Weight
Dimensions     Width     345mm
Height     96mm
Depth     319mm
Weight     Weight     3.3kg
Pad section
Built-in pads     12
External inputs     5 (three-zone x 1; monaural x 4)
Tone generator
Maximum Polyphony     64 notes
Voices     Drum and percussion: 1,061 Keyboard: 216
Effects     Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer
Drum kits     Preset: 50 User-defined: 200
Wave memory     100 MB (16-bit linear conversion)
Sequencer
Note Resolution     Quarter note / 480
Patterns     Preset patterns: 128 phrases (including 3 demo patterns) User-defined patterns: 50 phrases
Sequence formats     Proprietary SMF Format 0 (for loading only)
Sequence capacity     152,000 notes
Recording method     Real-time overdubbing
Waves
Readable quantity     500
Bit depth     16 bit
Wave memory     64 MB
Maximum size     Mono sample: 2 MB Stereo sample: 4 MB
Sample formats     Proprietary, WAV, and AIFF
Other
Display     Backlit LCD with 2 rows of 16 characters

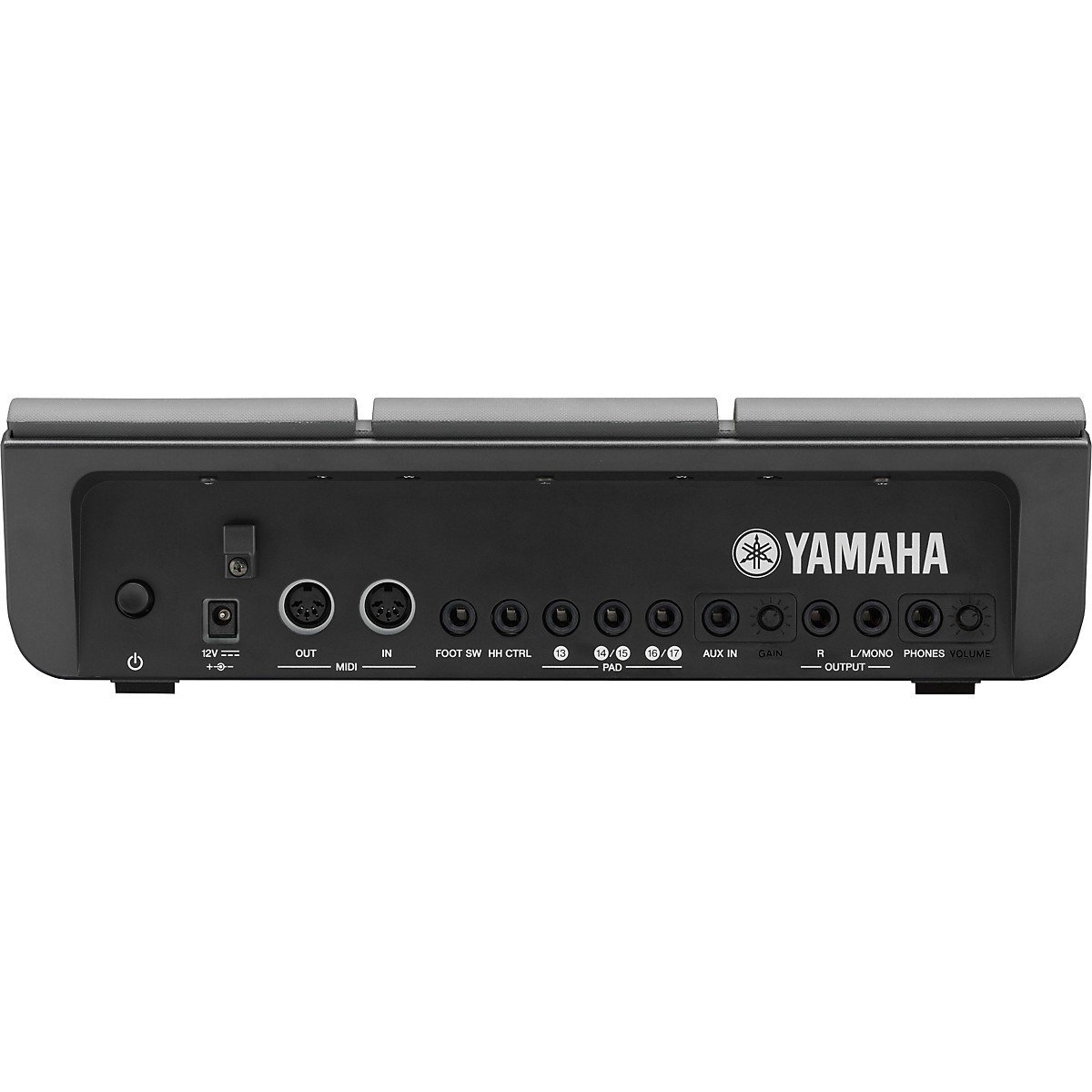

Connectors     PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch) PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger) HI-HAT CONTROL jack (standard stereo-phone plug) FOOT SW jack (standard stereo-phone plug) OUTPUT L/MONO and R jacks (standard phone plugs) PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN.
Power Consumption     9W (DTXM12 and PA-5D adaptor)
Package Contents     Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner’s Manual , Data List booklet, DVD-ROM (Cubase AI5)
Trigger section
Pad functions     Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages
Click-track
Tempo     30 to 300 BPM. Tap tempo functionality
Beats     1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16
Note timing     Accent notes, quarter notes, eight notes, sixteenth notes, triplets
