Description
TC Helicon Play Acoustic combines all the things you need to make a live acoustic performance shine: lavish vocal sounds, perfect backing harmonies, best-selling guitar effects, and unique processing that makes your six-string sing – in perfect harmony with your voice.
- Professional vocal effects and tone
- Natural sounding vocal harmonies guided by your guitar
- Guitar FX styles from TC Electronic®
- BodyRezâ„¢ Filtering and Onboard EQ and DI for impeccable acoustic guitar tone
- Version 1.2 Firmware offers a TC guitar delay plus per preset Guitar FX storage
WHAT EVERY SINGER WANTS
Keep your vocals clean with a tight reverb or simple harmony – or go all out with tasty delays, thick doubling, edgy hardtuning, cool modulations, and raw distortions. The choice is yours with hundreds of presets from the most popular styles.
ACOUSTIC ALCHEMY
Play Acoustic treats your guitar with the respect it deserves. Tailor-made guitar FX from TC Electronic add a sweet touch of magic and our new BodyRez™ gives you a fuller, acoustic tone when you’re playing through a PA.
VOCAL FX + GUITAR FX IN ONE PEDAL
- Access your effects directly, choose the presets you want and find the styles you like.
- Easily browse hundreds of preset sounds.
- Add dazzling effects for the chorus, or strip it down for the verse, you decide!
- Dedicated inputs and outputs for your voice and guitar – plus inputs for headphones, auxiliary devices, an expansion pedal and USB for recording, updates and new presets.
VOCAL FX HIGHLIGHTS
- 100s of presets from the most popular styles
- Adaptive Toneâ„¢ – your personal sound engineer
- Easier than ever to create and personalize your sound
- Practice favorite tracks with Vocal Cancel
- Even more control with our Mics and Footswitches
GUITAR FX HIGHLIGHTS
- Legendary TC Electronic® Guitar FX – Hall of Fame Reverb, Flashback Delay & Corona Chorus
- New: BodyRezâ„¢ restores acoustic tone to your amplified guitar
- Guitar feedback-proofing with notch filter and phase controls
- Separate vocal and guitar outputs, or a stereo mix of both
- Extend Your FX Control with the optional Switch-3 pedal
SPECIFICATIONS
VOCAL FX
- µMod
- Delay
- Reverb
- Harmony
- Double
- Transducer
- Tone
- HardTune & Correctio
GUITAR FX
- Reverb
- Delay
- Chorus
- BodyRez
- Guitar Anti-feedback
- Tuner
CONTROL
- 100+ Song & Artist Inspired Presets, Memory for 500
- Simple Vocal & Guitar FX Editing via Direct Access Buttons
- Direct Access to Favorite, Genre, Mix and Setup Menus
- Preset Up/Down and HIT Footswitch
- Graphics LCD Display
- Bump-Protected Mic Level
- Dual-Colour Backlit Buttons
DESIGN
SIZE
- Height: 1.8 inches (45 mm)
- Width: 7.9 inches (200 mm)
- Depth: 6.1 inches (156 mm)
WEIGHT
- Weight: 2.2 lb. (1 kg)
CONSTRUCTION
- Dual die-cast clamshell design
- Acrylic Lens
- Punch-cut Metal connection panel
- Rubberized footings
- Backlit Graphic LCD Display

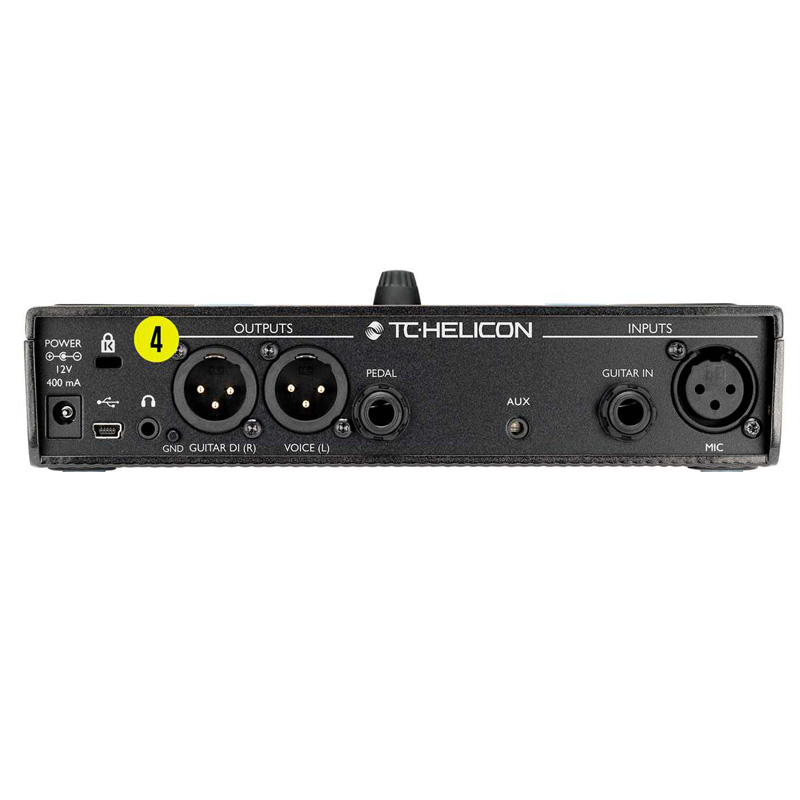

CONNECTIONS
ANALOG INPUTS
- Connectors: Mic.: balanced XLR, Guitar: unbalanced 1/4″ TS, Aux: 1/8″ stereo mini jack
- Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm
- Mic Input Level @ 0 dBFS: -42dBu to +13dBu
- EIN @ Max Mic Gain Rg = 150 Ohm : -127 dBu
- Mic SNR: > 104 dB
- Phantom Power: +48V (on/off via Setup menu)
- Guitar Input impedance: 1 MOhm
- Guitar Input Level @ 0 dBFS: 12 dBu
- Guitar Input SNR: > 115dB
- Aux Input Level @ 0dBu: +2dBu
- A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted
ANALOG OUTPUTS
- D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
- Connectors, balanced: XLR
- Output Impedance Balanced/ Unbalanced: 80/40 Ohm
- XLR Output 0dBFS: +2 dBu
- Dynamic Range: > 109 dB, 20 Hz to 20 kHz
- Frequency Response: +0.30/-0 dB, 20 Hz to 20 kHz
- Headphone Out: 1/8″ Mini stereo jack
CONTROL
- USB: USB-B (Preset Management, Firmware Updates and audio I/O)
- Pedal: 1/4″ TRS phone jack
- Mic Control using TC-Helicon MP-75Â Microphone or Sennheiser e 835 FX mic.
SAFETY AND REGULATIONS
POWER
- External Power Supply. Mains Voltage Input: 100 to 240 VAC, 50 to 60 Hz (auto-select)
- 12V DC 0.4A max output
- Power Consumption: < 14 W
SAFETY
- EMC – Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
- Safety – certified to: IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
ENVIRONMENT
- Operating Temperature: 32° F to 122° F (0° C to 50° C)
- Storage Temperature: -22° F to 167° F (-30° C to 70° C)
- Humidity: Max. 90 % non-condensing
WHAT’S IN THE BOX?
- Region specific power supply
- USB cable
- User guide
