Description

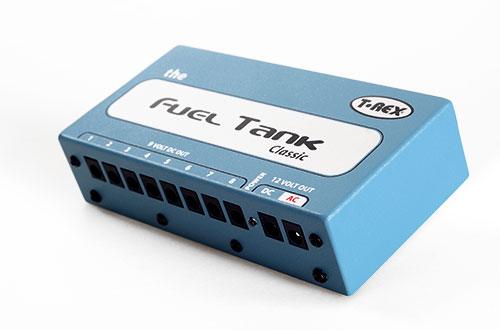

The T-Rex FuelTank Classic power adapter delivers 1.500mA of reliable power. Two of the ten outputs provide 12-volt power with isolated ground – one DC and the other AC, for AC pedals. No more batteries to change. No more tangled cables to trip over. T-Rex FuelTank Classic is the perfect power supply unit for guitarists who want to focus on their performance, not their gear.
Delivering 1,500mA through ten DC plugs, FuelTank Classic powers all your guitar pedals – keeping you running on full power night after night.
With a compact design, FuelTank fits conveniently on any pedal board including the T-Rex ToneTrunk effect board. And it comes with all the cables you need to get you up and running.
RUNNING ON FUEL
- Mains input power plug, 3-pin standard plug
- Voltage selector, 115/230V
- Eight 9-volt DC output plugs, all sharing the same ground. Giving a total of 500mA
- 1x 12V DC output with isolated ground, giving 500mA
- 1x 12V AC output with isolated ground, giving 500mA
- Slow burning fuse 250V 250mA
- One 5-connector link cable/daisy chain for the DC outputs
- Eight black extension cables for the DC outputs, length 25 cm
- ten black extension cables for the DC outputs, length 50 cm
- two red extension cables for the 12-volt AC output, 25 cm
TECH SPECS
| Connections | 8x 9V DC output plugs, all sharing the same ground giving a totoal of 500mA 1x 12V DC output with isolated ground, giving 500mA 1x 12V AC output with isolated ground, giving 500mA |
|---|---|
| Input mains voltage | Switchable 115V or 230V mains |
| Cables | 1x Red 50cm AC cable with 2,1mm – 2,5mm connectors for use on the 12V AC outlet 1x Blue 50cm AC cable with 2,5mm – 2,5mm connectors for use on the 12V AC outlet Black 50cm DC cable with 2,1mm DC – 3,5mm mini-jack connectors Black link DC cable with five 2,1mm – 2,1mm connectors 4x Black 20cm DC cable with 2,1mm – 2,1mm connector 4x Black 50cm DC cable with 2,1mm – 2,1mm connector Mains power cable |
| Pedal size incl. knobs (W x H x D) | 160 x 38 x 80 mm / 6,3 x 1,5 x 3,2 inch |
| Weight excl. packaging | 0,800 kg / 28,2 oz |
