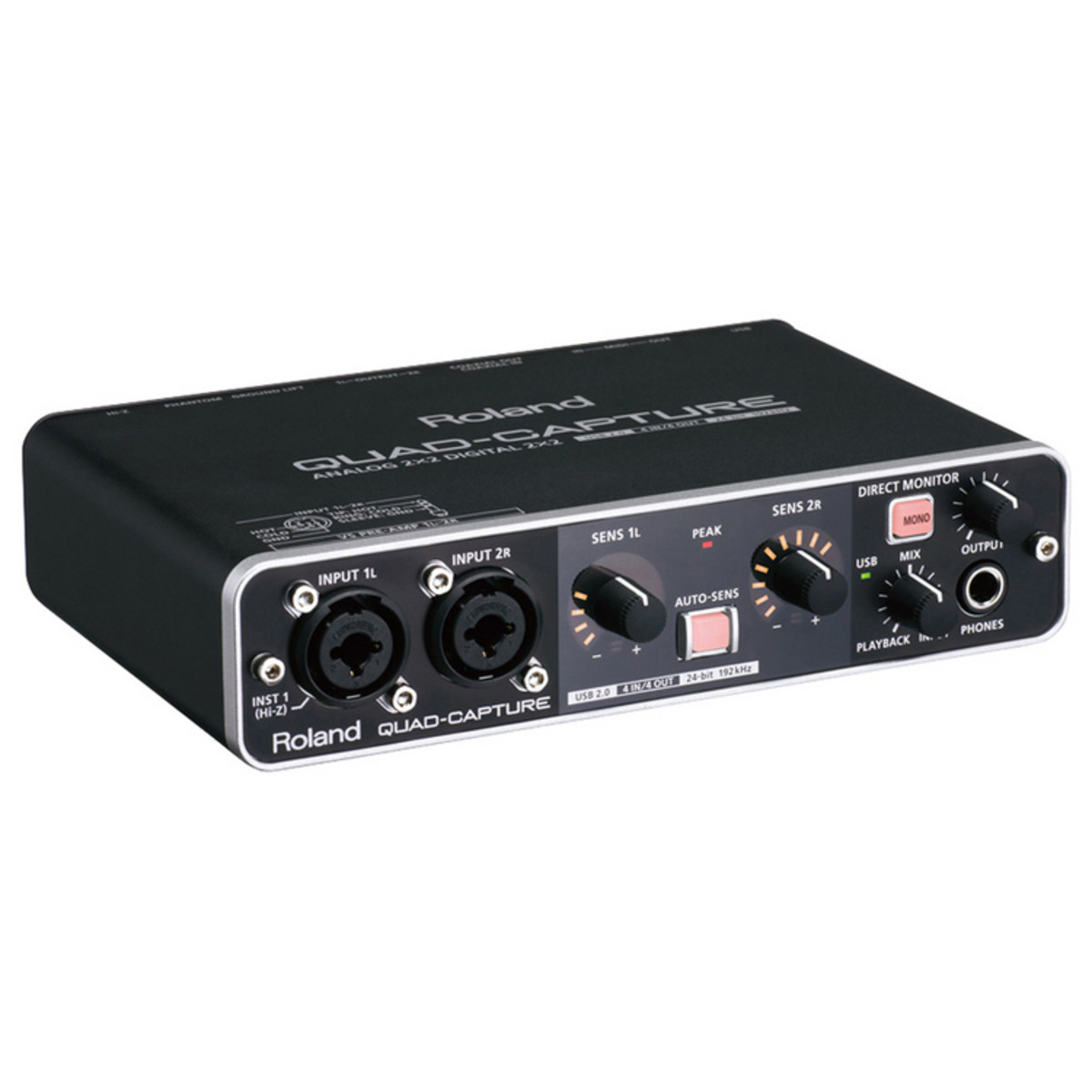

Roland QA55 Quad Capture Audio Interface

Description

With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, QUAD-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multichannel computer-based productions on the go. With quality and performance that far exceeds its size and price, QUAD-CAPTURE stands at the head of its class.

• VS Preamps

  QUAD-CAPTURE boasts two premium-grade, digitally controlled mic preamps (VS Preamps) made from the same high-grade components as the preamps found in Roland’s V-Studio 700 and M-400 digital mixer. Two XLR/TRS combo inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel. The VS preamps can be controlled easily and intuitively with the included graphical Control Panel software (Mac/PC).

• One-Click AUTO-SENS

  Never before has it been faster or easier to set perfect input levels—simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and QUAD-CAPTURE automatically sets the ideal recording level for each input. Whether you’re a beginner or a professional, AUTO-SENS is great for quick, fail-safe recordings, saving you setup time and letting you focus on where it starts… the performance.

• VS Streaming

  QUAD-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS Streaming technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac).

• Low-Noise Power Supply

  One of QUAD-CAPTURE’s key “behind-the-scenes” features is its low-noise, wide-ranging power supply. Designed to deliver a clean, balanced input and output, it provides a reliable foundation for any professional audio application or environment. When driven by the USB bus power supply, QUAD-CAPTURE’s power is regenerated, providing the analog circuitry ideal voltage for the very best sound quality and efficiency in mobile environments.

• Aluminum Build, DI Functionality

  QUAD-CAPTURE is small, strong, and housed in a road-tough aluminum body, so you can transport it anywhere with the confidence that its premium internal components are securely protected. For live-concert environments, QUAD-CAPTURE also provides Direct-Box (DI) functionality, essential for noise-free live stage use.

FEATURES:

• Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
• Graphical Control Panel software provides fast, intuitive control of the VS Preamps
• Phantom power, ground lift, and Hi-Z switches
• One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
• Extreme low-latency VS Streaming driver
• Low-noise, wide-range power supply
• Compact with durable aluminum body and Direct Box functionality.

SPECIFICATIONS:

NUMBER OF AUDIO RECORD/PLAYBACK CHANNELS

• Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHzRecording: 4 channels
  Playback: 4 channels
• Sampling Frequency = 192 kHzRecording: 2 channels
  Playback: 2 channels

SIGNAL PROCESSING

• PC interface24 bits
• AD/DA Conversion24 bits
• Internal40 bits

SAMPLING FREQUENCY

• AD/DA Conversion192 kHz, 96 kHz, 48 kHz, 44.1 kHz
• DIGITAL IN/OUT96 kHz, 48 kHz, 44.1 kHz

NOMINAL INPUT LEVEL

• Input jacks 1, 2 (XLR type)-60 to -6 dBu
• Input jacks 1, 2 (1/4-inch TRS phone type)-50 to +4 dBu

NOMINAL OUTPUT LEVEL

• OUTPUT 1, 2+0 dBu (balanced)

HEADROOM: 14 dB

INPUT IMPEDANCE

• Input jacks 1, 2 (XLR type)4.8 k ohms (balanced)
• Input jacks 1, 2 (1/4-inch TRS phone type)15 k ohms (balanced)

OUTPUT IMPEDANCE

• OUTPUT 1, 22 k ohms (balanced)

PHONES: 47 ohms

FREQUENCY RESPONSE

• 192.0 kHz20 Hz to 90 kHz (+0/-8 dB), 20 Hz to 60 kHz (+0/-2 dB)
• 96.0 kHz20 Hz to 40 kHz (+0/-2 dB)
• 48.0 kHz20 Hz to 22 kHz (+0/-2 dB)
• 44.1 kHz20 Hz to 20 kHz (+0/-2 dB)

RESIDUAL NOISE LEVEL

• INPUT 1, 2 to OUTPUT 1, 2-95 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)
  * Internal Direct Monitor Mixer setting
  * Input channel fader: Unity

DYNAMIC RANGE

• AD block: INPUT 1, 2: 104 dB typ. (GAIN: min.)
• DA block: OUTPUT 1, 2: 109 dB typ.

OTHER

• Connectors: Input jacks 1, 2 (XLR type / 1/4-inch TRS phone type)
  XLR type … balanced (phantom power: DC 48V, 6mA Max per channel)
  1/4-inch TRS phone type … balanced (INPUT 1 supports high impedance)
  COAXIAL IN connector
  COAXIAL OUT connector
  Headphone jack (Stereo 1/4-inch phone type)
  OUTPUT jacks 1, 2 (1/4-inch TRS phone type (balanced))
  MIDI connectors (In, Out)
  USB connector
• Interface: Hi-Speed USB
  Digital input/output: Coaxial type (Conforms to IEC60958 consumer format)
  MIDI input/output
• Power Supply: USB Bus Power
• Current Draw: 480 mA
• Accessories: Owner’s Manual, Driver CD-ROM, USB cable

SIZE AND WEIGHT

• Width: 185 mm7-5/16 inches
• Depth: 134 mm5-5/16 inches
• Height: 44 mm1-3/4 inches
• Weight: 570 g1 lbs. 5 oz.
