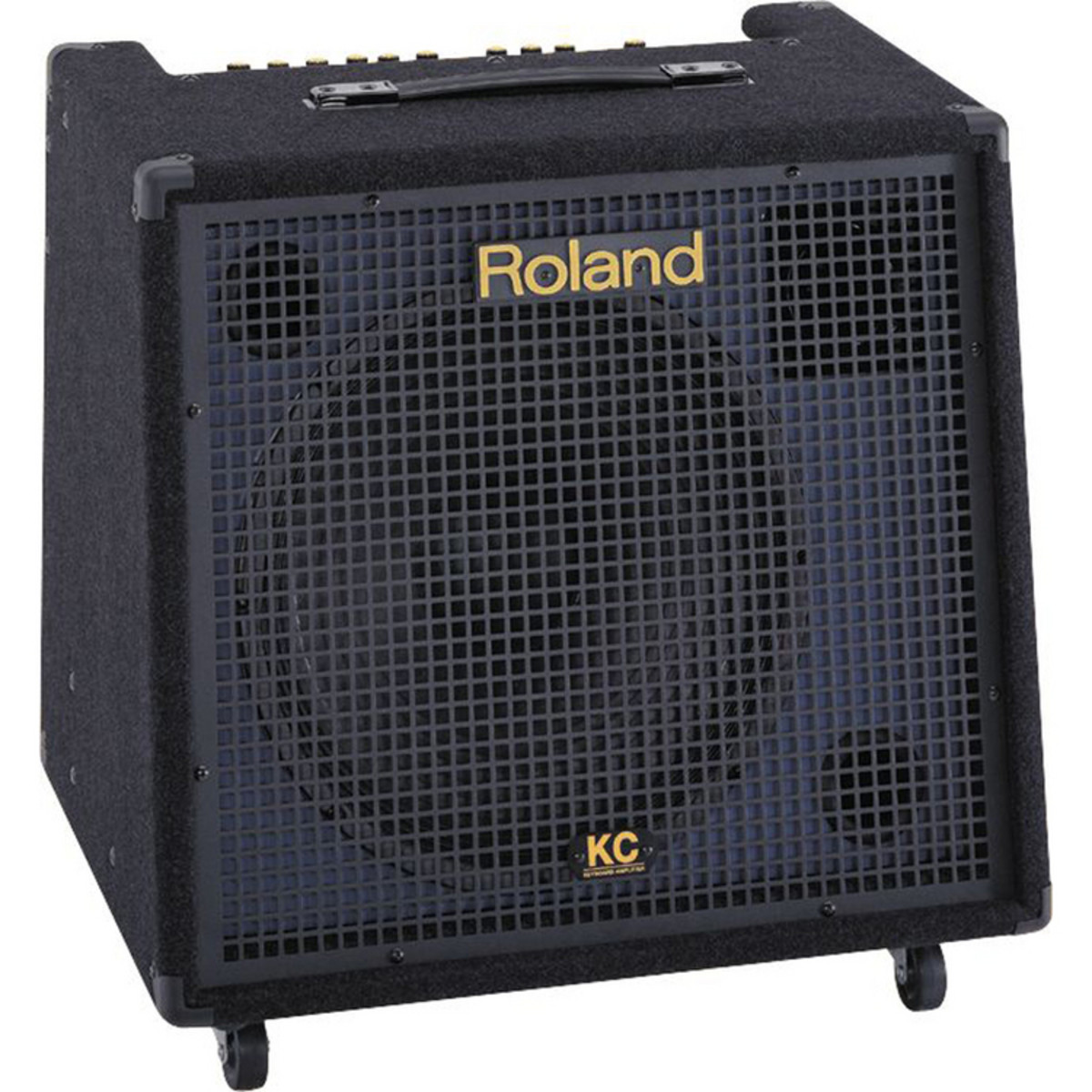

Roland KC550 Keyboard Amplifier

Description

The KC-550 boasts 180 watts of powerful sound via a 15-inch speaker and horn tweeter. In addition to its four input channels, this flagship amp includes an Output Select switch for selecting the monitor sound destination, a Shape switch for quick sound adjustment and an XLR Line output for direct connection to a mixing console.

• Up to 4-Channel Mixing

  KC-series amplifiers feature a flexible mixing section designed with the performing musician in mind. Our flagship models feature up to four stereo inputs, and KC amps include a Microphone input and stereo Auxiliary input for connecting CD players.

• Stereo Link Capabilities

  The KC-550 and KC-350 include Roland’s Stereo Link feature for chaining two amplifiers. Using a single cable, you can connect two KC amps for true stereo sound while controlling them both from the amp nearest you on stage.

• Subwoofer-Ready

  Want more low end? Simply add an optional subwoofer like Roland’s new KCW-1. Connections are easy, thanks to the Subwoofer output found on all new KC amps. Now even the most affordable models can sound huge!

• Made for the Road

  KC amps are built for life on the road. All models have built-in handles for easier transportation (the KC-550 also includes casters) and a rugged design with heavy-duty carpeting, protective edges and an all-metal grille.]\

FEATURES:

• Flagship keyboard amplifier with powerful 180-watt/15” speaker and horn tweeter
• Output Select feature and convenient Shape switch for tonal adjustment
• 3-band EQ and Subwoofer output compatible with new KCW-1
• XLR Line output for connection to mixing consoles
• Stereo Link In/Out for chaining two KC-550s for stereo applications.

SPECIFICATIONS:

OUTPUT

• Rated Power Output: 180 W
• Speakers: 38 cm (15 inches) x 1
  Tweeter x 1

NOMINAL INPUT LEVEL (1 KHZ)

• Channel 1 (MIC/LINE): -50 to -20 dBu
• Channel 2-4 (LINE): -20 dBu
• STEREO LINK INPUT: 0 dBu
• AUX IN: -10 dBu

NOMINAL OUTPUT LEVEL (1 KHZ)

• LINE OUT: +4 dBu
• STEREO LINK OUTPUT: 0 dBu
• SUBWOOFER OUT: +4 dBu

CONTROLS

• CHANNEL CONTROL:
  • CH1 VOLUME Knob
  • CH2 VOLUME Knob
  • CH3 VOLUME Knob
  • CH4 VOLUME Knob
  • OUTPUT SELECT Switch
  • PHONES VOLUME Knob
• MASTER CONTROL
  • EQ (LOW) Knob
  • EQ (MIDDLE) Knob
  • EQ (HIGH) Knob
  • SHAPE Switch
  • VOLUME Knob
  • POWER Switch
  • GND LIFT Switch

INDICATOR

• POWER
• CONNECTOR:
  • SCH1 INPUT Jack (XLR type)
  • CH1-4 INPUT L (MONO) Jacks (1/4″ phone type)
  • CH1-4 INPUT R Jacks (1/4″ phone type)
  • LINE OUT L (MONO) Jacks (XLR type, 1/4″ phone type)
  • LINE OUT R Jacks (XLR type, 1/4″ phone type)
  • AUX IN Jacks (RCA phono type)
  • SUBWOOFER OUT Jack (1/4″ phone type)
  • STEREO LINK OUT Jack (1/4″ phone type)
  • STEREO LINK IN Jack (1/4″ phone type)
  • PHONES Jack (Stereo 1/4″ phone type)
• POWER SUPPLY: VoltageAC 117 V, AC 230 V, AC 240 V

SIZE AND WEIGHT

• Width: 590 mm23-1/4 inches
• Depth: 445 mm17-9/16 inches
• Height: 536 mm21-1/8 inches
• Weight: 34.0 kg75 lbs.
