Roland Duo Capture MK2 USB Audio Interface

Description

Delivering flexible features in a compact, affordable package, the DUO-CAPTURE mk2 USB Audio Interface is ideal for mobile audio production with your laptop or iPad. It’s equipped with two audio inputs and two audio outputs, plus dual headphone outs that are perfect for side-by-side musician/engineer sessions. Ultra-stable, low-latency drivers offer premium performance, while a versatile selection of I/O formats accommodate a variety of gear. With its unique, slimline design and stable operation, DUO-CAPTURE mk2 is the perfect audio interface for recording musicians on the go.

FEATURES:

• Small, convenient audio interface for mobile musicians
• Compatible with Mac and PC; iPad compatibility via Apple’s iPad Camera Connection Kit
• 1/4-inch MIC/GUITAR input with Hi-Z switch for connecting a guitar directly
• 1/8-inch stereo input; 1/8-inch and 1/4-inch dual headphone outputs
• Dedicated controls for input and output volume
• Low-latency ASIO (Windows) and Core Audio (Mac) drivers; input monitor function
• USB bus powered
• Cakewalk SONAR X1 LE for Windows included.

SPECIFICATIONS:

• Number of Audio Record/Playback ChannelsRecord: 1 pair of stereo
  Playback: 1 pair of stereo
• Signal Processing: 24 bits
• Sampling Frequency: 48 kHz, 44.1 kHz
• Nominal Input Level:
  • LINE IN: -10 dBu
  • MIC/GUITAR (Hi-Z button = ON): -25 dBu
  • MIC/GUITAR (Hi-Z button = OFF): -45 dBu
• Interface: USB

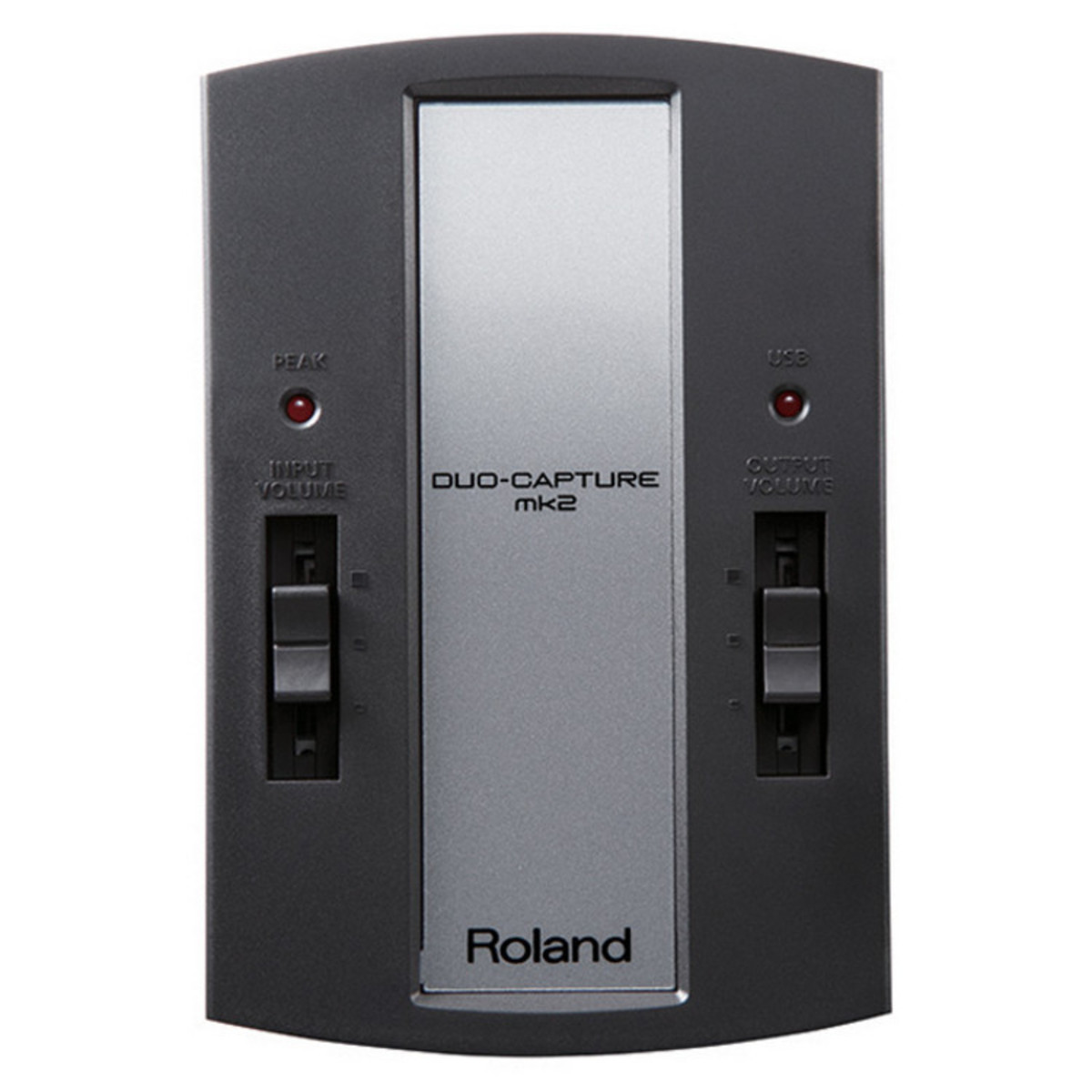

• Controllers:
  • INPUT VOLUME slider
  • OUTPUT VOLUME slider
  • INPUT GAIN button
  • Hi-Z button
  • INPUT MONITOR button
  • SAMPLE RATE switch
  • COMP/TAB switch
• Indicators:
  • USB indicator
  • PEAK indicator

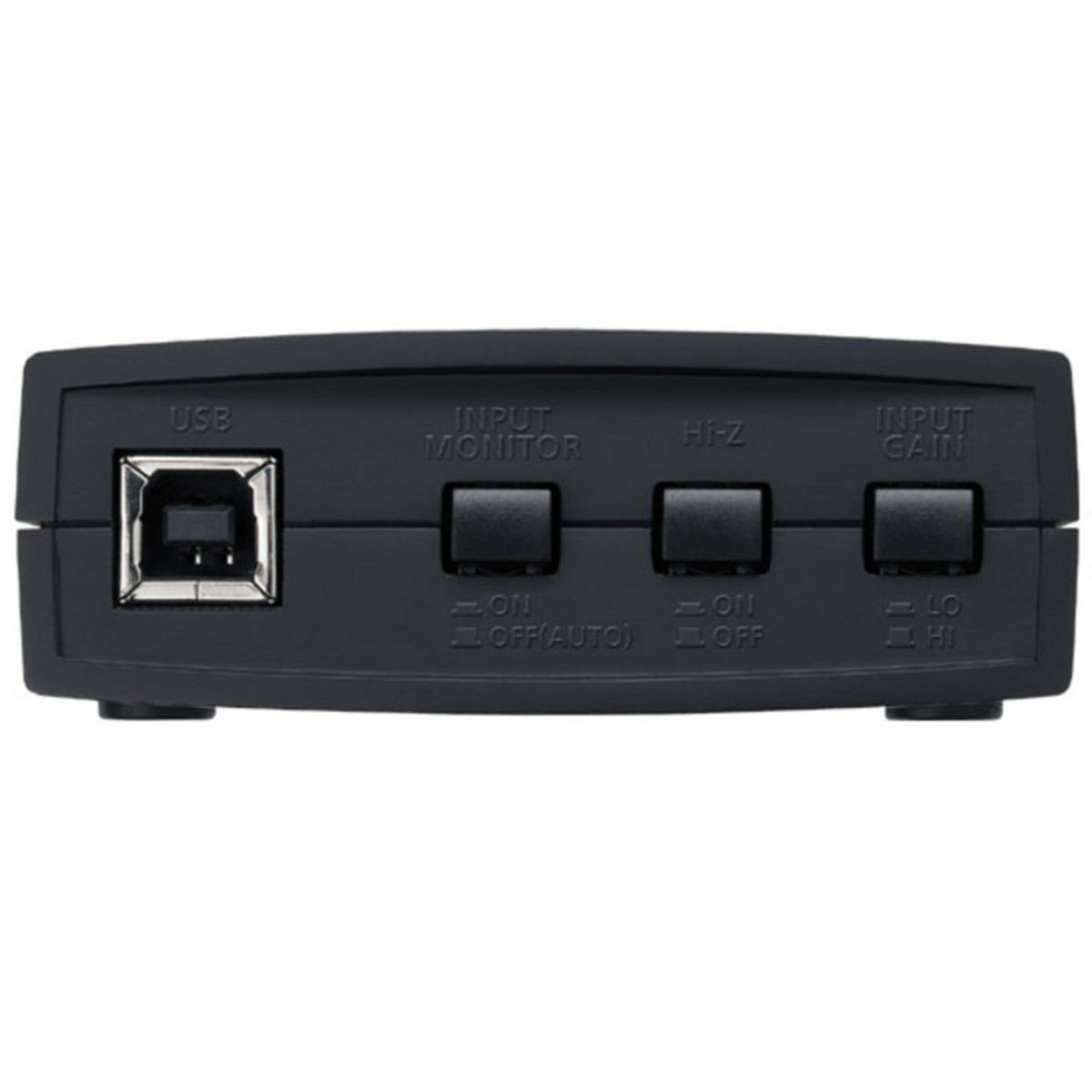

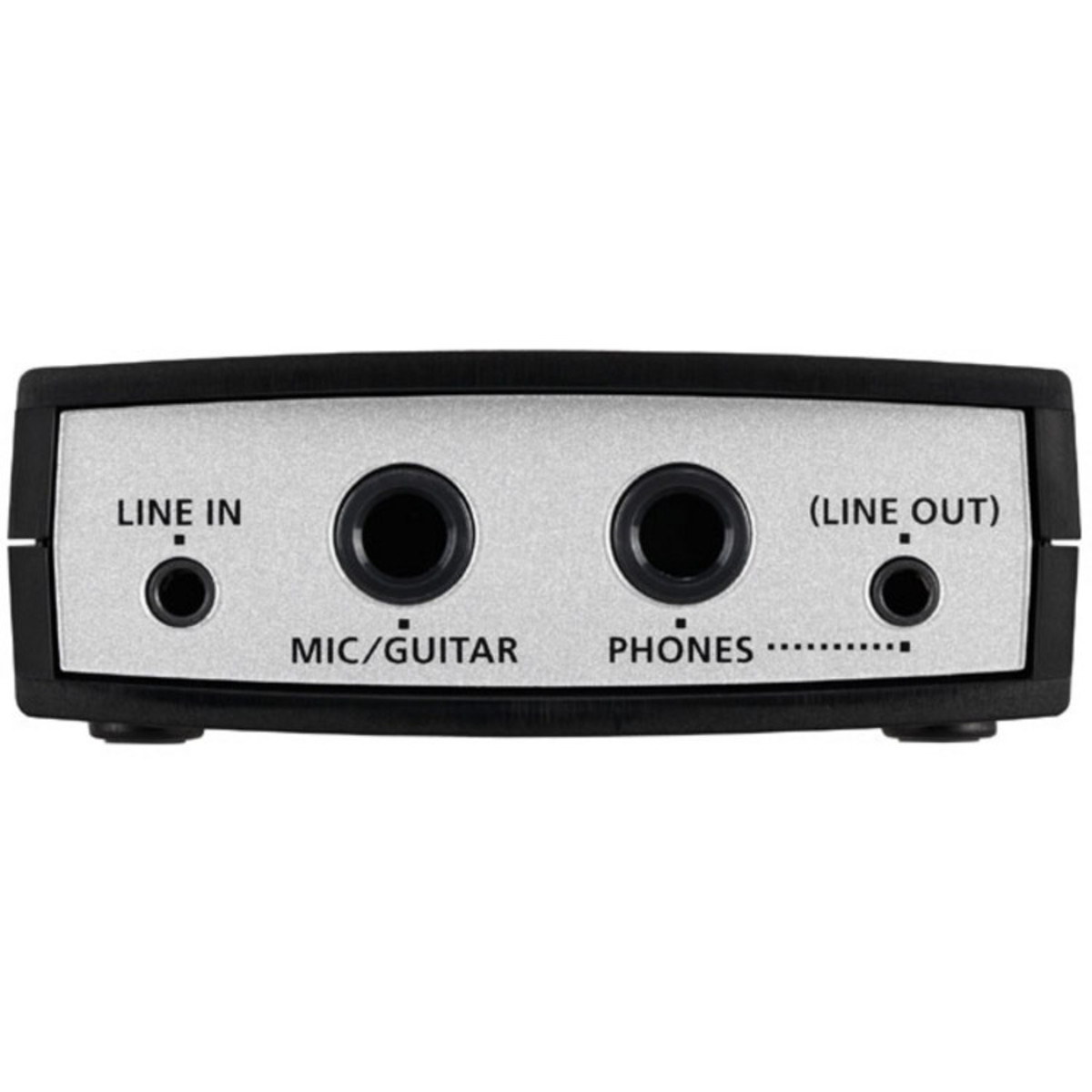

• Connectors:
  • LINE IN jack: Stereo miniature phone type
  • MIC/GUITAR jack: 1/4-inch phone type]
  • PHONES jack: Stereo 1/4-inch phone type
  • PHONES (LINE OUT) jack: Stereo miniature phone type
  • USB port: USB Type B
• Power Supply: Supplied from the computer via USB
• Current Draw: 96 mA
• Accessories:
  • Owner’s Manual
  • Driver CD-ROM
  • USB cable

SIZE AND WEIGHT (MAIN UNIT ONLY)

• Width: 81 mm3-1/4 inches
• Depth: 119 mm4-11/16 inches
• Height: 31 mm1-1/4 inches
• Weight: 130 g0 lbs. 5 oz.
