Description
KEY FEATURES
To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, Powerstem, allows you to have high, medium or low power modes.
The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.
With one channel, this amp still offers a variety of tones. By using the tilt control you can vary your sound from normal to high treble to access the one you prefer.
There are lots of features on the Origin so we’ve made some videos to help you better understand how the Origin can help shape your sound.
DOWNLOAD YOUR MANUAL
TECHNICAL SPECIFICATION
GENERAL
Model
Origin20H
Range
Origin
Technology
Valve
Channels
1
ELECTRONICS
Output wattage
High power 20W, mid power approx 3W and low power approx 0.5W
Outputs

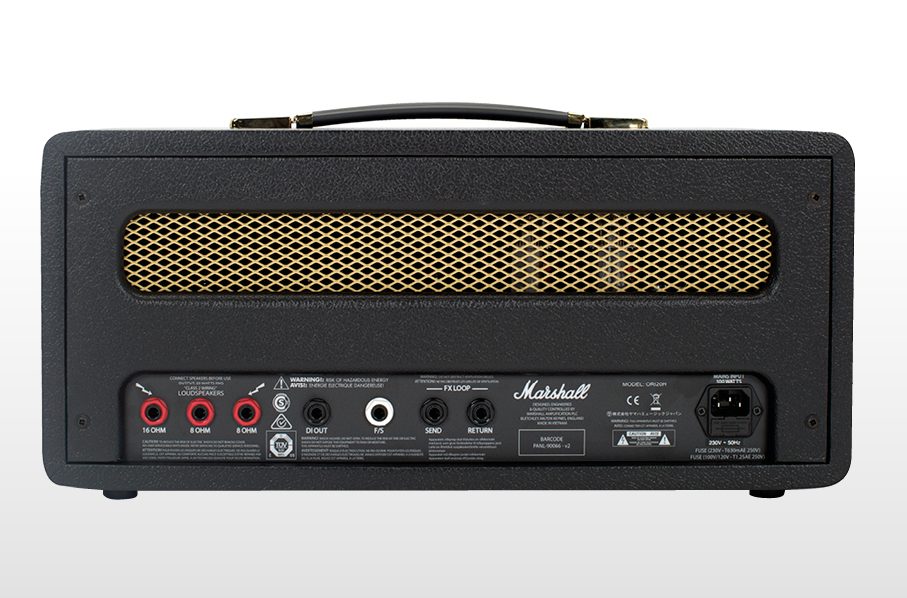

Speaker outputs: 3 x 1/4″ jack sockets (16Ω load / 8Ω load), DI out (1/4″ jack)
Inputs
1 x 1/4″ jack instrument input, footswitch
Controls
Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
Effects
None
Effects loop
Yes, Series, Send/Return
VALVES
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-90016 included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
9.4 kg / 21 lbs
Width
520 mm / 20.5″
Height
225 mm / 8.9″
Depth
220 mm / 8.7″
