ARP ODYSSEY 2

KORG ARP ODYSSEY SYNTHESIZER KEYBOARD

Rs.76,935.00 Rs.71,549.00

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

7% Off. Hurry, there are only 1 item(s) left!

1 in stock

QTY:

Product Description

The ARP Odyssey was an analog synthesizer originally produced in 1972 by the American manufacturer ARP Instruments, Inc. that quickly garnered a faithful following among musicians. Well respected for its high value, ease to play and portability, the ARP Odyssey had undergone several improvements during its history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. Loved by a wide range of musicians as a historical classic, its sound can be heard on numerous classic songs.

Now in 2015, KORG has brought back the ARP Odyssey for today. With the advisory assistance of David Friend, the co-founder of ARP Instruments, KORG has completely reproduced the original circuitry for artists looking to recreate classic sounds and explore new ones. Together the engineers at KORG and Arp were able to nailthe sound and feel of the original. Every detail has been carefully considered to stay true to the quality of the original, down to the sophisticated semi-hard case.

The legendary ARP sound is loved to this day. Long stopped, the wheels of history have again begun to move.

The original ARP Odyssey was a 2VCO duo-phonic instrument. Its most distinctive feature was its sharp, penetrating sound and its rich range of tonal variation. With a variety of functions and modulation possibilities provided by oscillator sync, sample & hold, pulse width modulation, high-pass filter, two types of envelope generator, and pitch bend using the PPC, it was able to create a versatile range of sounds.

The ARP Odyssey reproduces the sounds of these components at the circuit level. Under the supervision of David Friend, parts were carefully selected and every detail was adjusted to replicate the original unit’s distinctive synthesis.

SPECIFICATIONS:

  • Keyboard: 37-note (Slimkey, No velocity sensitivity, No aftertouch)
  • Maximum Polyphony: 2 voices for duophonic; normally monophonic
  • Controllers
    • Transpose Positions:2 octaves down, normal, 2 octave up
    • Proportional Pitch Control:b (Pitch down) Pad: about -2 / 3 octave ,– (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave
  • Noise Generator
    • Noise Spectrum Types (white and pink):Portamento
    • Maximum Speed:about 0.01 msec./oct
    • Minimum Speed:about 1.5 sec./oct
  • VCO (Voltage Controlled Oscillator)
    • Waveforms:Sawtooth, Square, Pluse (Dynamic Pluse)
    • Frequency Range:VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
    • Warm Up Drift:1/30 semitone from turn on max
    • Pulse Width:50 % – 5 %
    • Pulse Width Modulation:ADSR, +45 % , LFO, +15 %
    • Voltage Controlled Response:1 V/oct
    • Maximum Frequency Shifts:,LFO sin wave, +1/2 oct. LFO square wave, +1.5 oct. , ADSR, +9 oct. ,S/H, +2 oct.
* VCO-1 is low note priority, VCO-2 is high note priority.
  • VCF (Voltage Controlled Filter)
    • Types:Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
    • Frequency Range:16 Hz – 16 kHz
    • Maximum Usable Q:30
    • Resonance:1/2 – self oscillate
  • Voltage Controlled Response
    • C3 key (left edge): 0 V
    • C6 key (right edge) 3 V
  • VCA (Voltage Controlled Amplifier
    • Dynamic Range:80 dB
  • Ring Modulator
    • Type:Digital
    • Input Signal: VCO-1, VCO-2 (square wave)
  • Sample & Hold
    • Command Sources:Keyboard or LFO trigger
    • Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
  • ADSR Envelope Generator
    • Attack Time:5 msec. – 5 sec.
    • Decay Time: 10 msec. – 8 sec.
    • Sustain Level: 0 – 100 % or Peak
    • Release Time:15 msec. – 10 sec.
  • AR Envelope Generator
    • Attack Time:5 msec. – 5 sec.
    • Release Time:10 msec. – 8 sec.

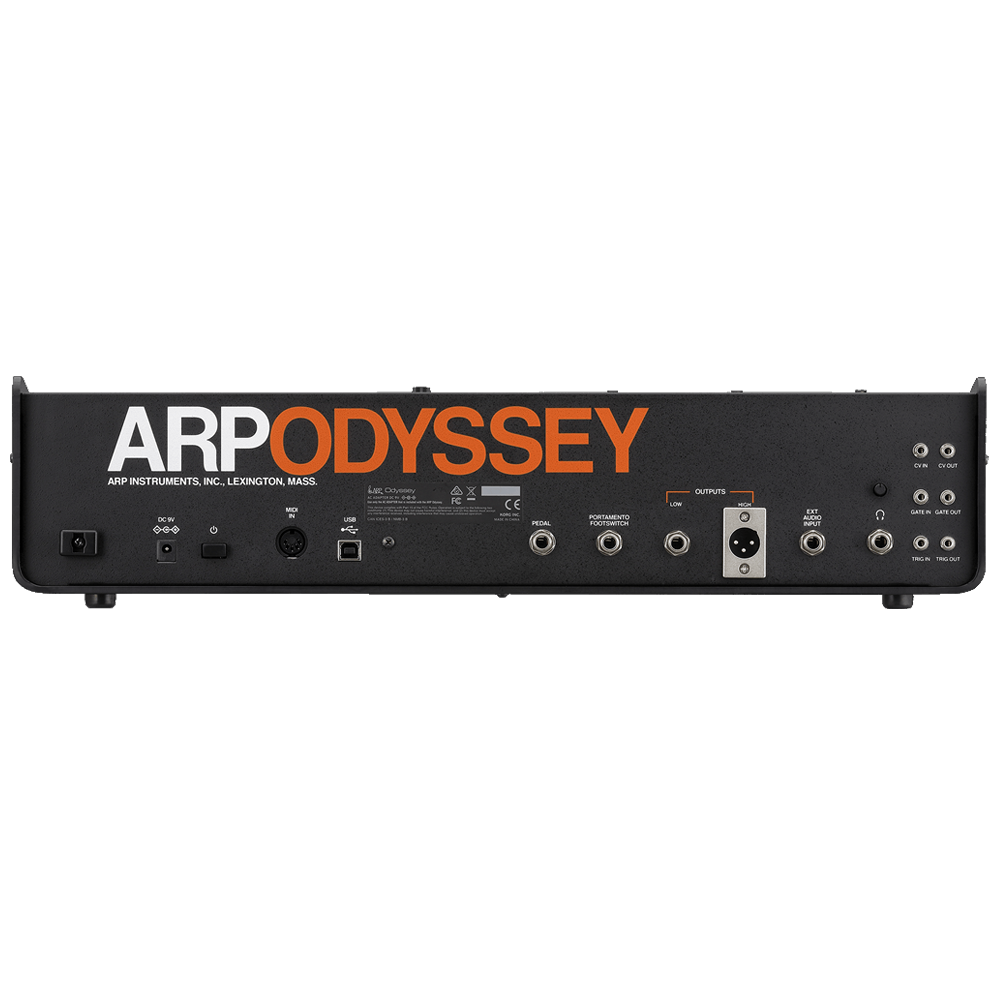

  • Control Input Jacks
    • Pedal:6.3 mm monaural phone jack
    • Portamento Foot Switch:6.3 mm monaural phone jack
  • Audio Output Jacks
    LOW

    • Connector:6.3 mm monaural phone jack
    • Maximum Output Level:-20 dBu@ 10 kΩ load:
    • Output Impedance:10 kΩ
  • Audio Output Jacks
    HIGH

    • Connector:XLR connector
    • Maximum Output Level:+4 dBu@ 1 kΩ load
Output Impedance:330 Ω
  • Headphones Jack
    • Connector:6.3 mm stereo phone jack
    • Maximum Output Level:50 mW + 50 mW@ 33 Ω load
    • Output Impedance:10 Ω
* Controllable by volume knob.
  • External Audio Input (Ext Audio Input) Jack
    • Connector:6.3 mm monaural phone jack
    • Maximum Input Level:-10 dBu
    • Input Impedance:22 kΩ
  • MIDI Connector: IN
  • USB Connector: Type B
  • CV IN/OUT Jacks:
    • Keyboard CV (IN/OUT):1 V/oct.
    • Connector:3.5 mm monaural phone jack
  • GATE IN/OUT Jacks:
    • GATE IN: +3 V (minimum)
    • GATE OUT:+10 V, key down; 0 V all keys up
    • Connector: 3.5 mm monaural phone jack
  • TRIG IN/OUT Jacks
    • TRIG IN: +3 V pulse min., 10 μsec. Duration minimum
    • TRIG OUT: +10 V pulse on key depression, 10 μsec. Duration
    • Connector:3.5 mm monaural phone jack
  • Power Supply: AC adapter jack (DC 9V)
  • Power Consumption: 6.5 W
  • Dimensions (W x D x H): 502 x 380 x 120 mm / 19.76″ x 14.96″ x 4.72″
  • Weight: 5 kg / 11.02 lbs
  • Included Items: AC adapter, phone cable, mini-phone cable, owner’s manual, dedicated semi-hard case
  • Accessories:
    • Expression/Volume Pedal:XVP-20
    • Volume Pedal: VP-10
    • Pedal Switch:PS-3
    • Pedal Switch: PS-1
    • Patch Cables:SQ-CABLE-6
