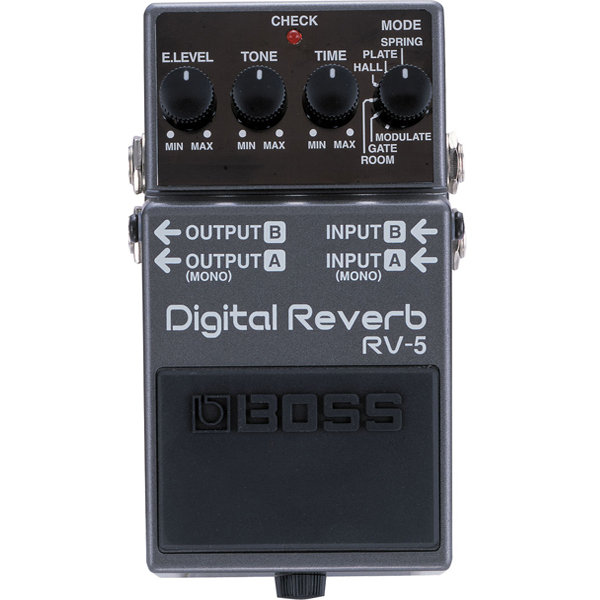

Boss RV5 Digital Reverb Pedal

Description

The RV-5 Digital Reverb offers six of BOSS’ best reverbs in an all-new stereo effects pedal. New reverbs include convincing spring reverb emulation and a high-quality gate reverb, plus an all-new Modulate mode for spacious detuned reverb sounds.

SPECIFICATIONS

• Nominal Input Level : -20 dBu
• Input Impedance : 1 M ohms
• Nominal Output Level : -20 dBu
• Output Impedance : 1 k ohms
• Recommended Load Impedance : 10 k ohms or greater
• Residual Noise : -93 dBu (IHF-A, Typ.): All knobs at center position
• Controls :-
  • Pedal Switch,
  • E.LEVEL knob,
  • TONE knob,
  • TIME knob,
  • MODE switch
• Connectors :-
  • INPUT-A (MONO) jack,
  • INPUT-B jack,
  • OUTPUT-A (MONO) jack,
  • OUTPUT-B jack,
  • AC adaptor jack (DC 9 V)
• Power Supply : DC 9 V: Dry battery (9 V type), AC Adaptor
• Current Draw : 50 mA (DC 9 V)
• Accessories : Dry battery (9 V type) S-006P/9 V (6F22/9 V), Owner’s Manual
• Options : AC Adaptor PSA-Series
• SIZE AND WEIGHT ( INCL. BATTERY )
  • Width : 73 mm/ 2-7/8 inches
  • Depth : 129 mm</ 5-1/8 inches
  • Height : 59 mm/ 2-3/8 inches
  • Weight : 440 g/ 1 lbs.
