Description

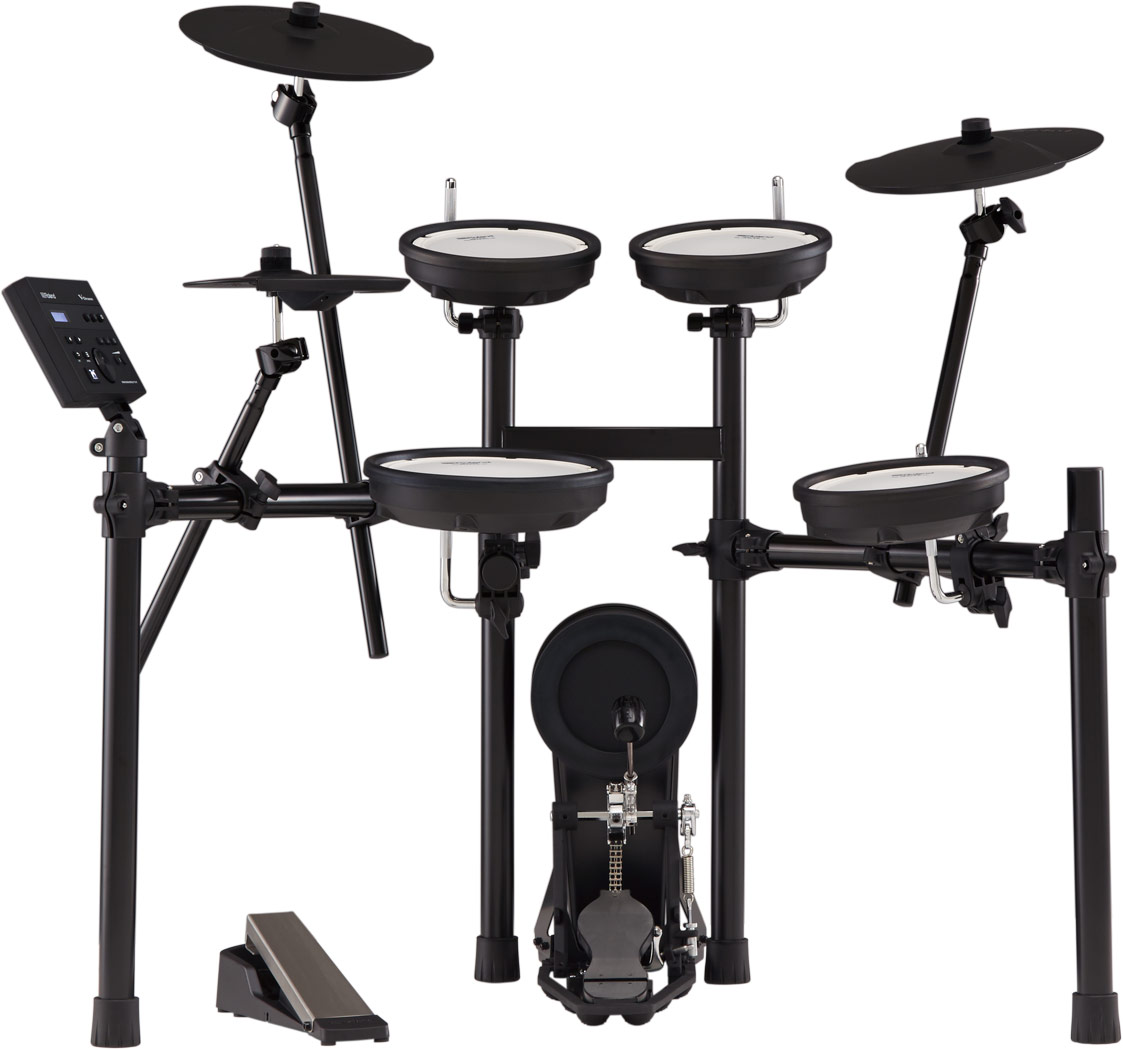

- Kit configuration (*1)
- Kick: KD-10
Snare: PDX-8
Hi-hat: CY-5
Hi-hat control pedal: Detactable for half-open stroke
Tom: PDX-6A x 3 *2
Crash: CY-8
Ride: CY-8
Drum stand: MDS-COMPACT - Drum kits
- 50 (Preset: over 20)
- Instruments
- 143
- Effect Types
- Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types - Coach functions (5 modes)
- Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up - Metronome
- Tempo (20–260)
Rhythm type (5 types)
Sounds (15 types) - Bluetooth
- Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) - Display
- 16 characters x 2 lines LCD (with backlight)
- Connectors
- OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control) - USB COMPUTER
- Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3 - USB Audio
- Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels - Power supply
- AC adaptor (DC 12 V)
- Current draw
- 250 mA
- SIZE AND WEIGHT
- Dimensions
- 1,230 (W) x 1,100 (D) x 1,200 (H) mm
48-3/7 (W) x 43-5/16 (D) x 47-1/4 (H) inches(including sound module, kick pad, kick pedal and drum throne) - Weight
- 21.7 kg / 47 lbs 14 oz
- OTHER
- Accessories
- Setup Guide
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Special connection cable - Options (sold separately)
- Additinal crash cymbal (Crash2): CY-8, MDY-Standard *4
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE series
