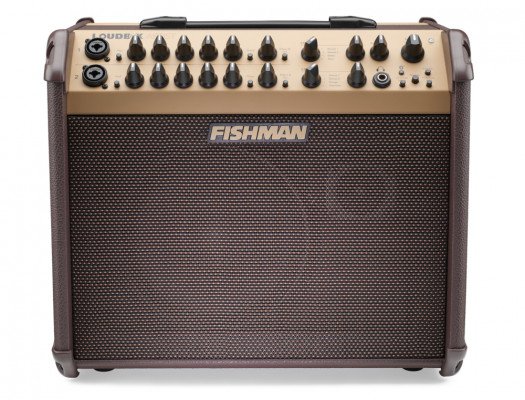

Description
FEATURES:
• Bluetooth® 4.0 Connectivity
• 120 watts of bi-amplified acoustic power
• Two mic/instrument channels accept 1/4” or XLR sources
• Input channels feature 3-band EQ and feedback controls
• Auxiliary stereo input with level control and 1/4” & 1/8” connectors
• Dual digital effects section, with independent channel & effects level
• D.I. output: balanced XLR outputs on each input channel and main mix
• Channel Mute to silence both input channels
• Headphone output
• Foot Switch input for remote muting of the input channels or Chorus, Flanger, and Slap Echo effects
• Two-way speaker design with built-in 10º baffle angle
INSTRUMENT & MIC CHANNELS:
• Combination 1/4” & XLR input
• Shelving bass and treble
• Resonant-style midrange
• Notch filter (feedback control)
• Input gain with 10dB pad and clip indicator
• 24-Volt phantom power for condenser mics
• Reverb and Delay effects level
• Chorus, Flanger and Slap Echo on/off
• Phase switch (feedback control)
• Dedicated effects loop
Specifications
POWER 120 watts, bi-amped
DRIVERS 8” woofer (100W), 1” soft dome neodymium tweeter (20W)
SPL 113dB SPL @ 1 meter
SPEAKER BAFFLE 10º built-in tilt
CONNECTIVITY Bluetooth® 4.0
DIMENSIONS 13.5” H x 15.5” W x 11.5” D (343 mm) x (394 mm) x (292 mm)
WEIGHT 25 lbs. (11.3 kg)
